| Brand Name: | OEM |
| Model Number: | DSJ |
| MOQ: | 5 |
| цена: | $1,200-1,300 |
| Attribute | Value |
|---|---|
| Warranty | 1 year |
| Customized support | OEM, ODM |
| Power Source | Electric |
| Application | Pulling, power construction |
| Oversize dimension | 950*500*400 mm |
| Cable diameter | 30-180mm |
| Electric motor | 1.1KW * 2 |
| Pulling Speed (m/min) | 8 |
| Pulling Capacity (KGS) | 700 |
| Maximum Capacity | 900KGs |

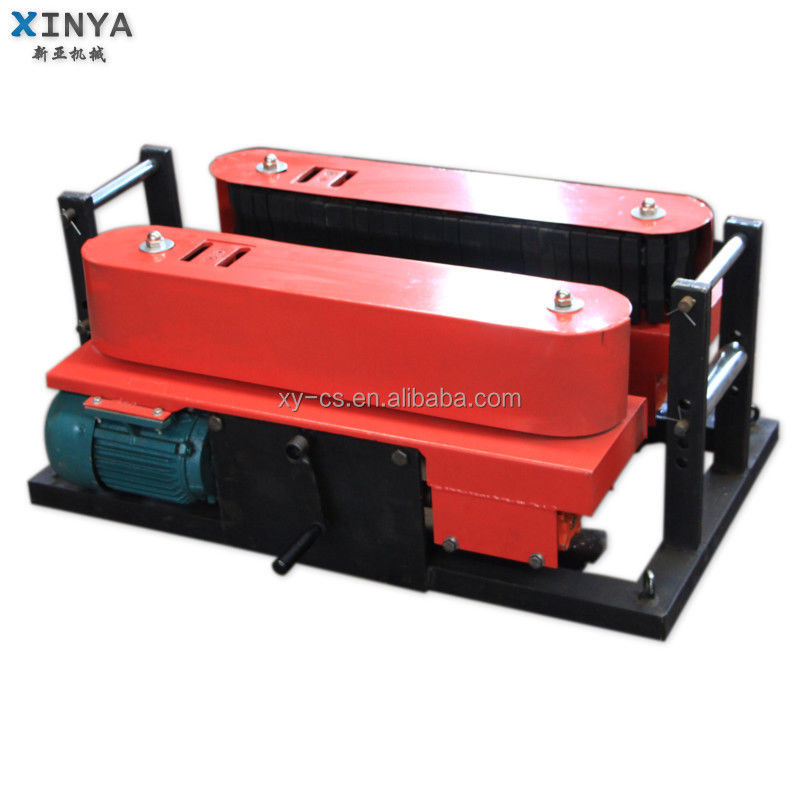

The DSJ 180 Cable Push Pulling Machine is designed for efficient cable transmission in various industrial applications including power, petroleum, chemical plants, industrial construction, power plant extensions, substations, and city network transmission systems.
| Model Type | DSJ-150 | DSJ-180 |
|---|---|---|
| Line pulling (KGS) | 700 | 900 |
| Pulling Speed (m/min) | 8 | 6 |
| Electric motor | 1.1KW * 2 | 1.5KW * 2 |
| Oversize dimension (mm) | 950*500*400 | 1020*590*400 |
| Weight (KGS) | 150 | 180-200 |
| Cable diameter | Φ30 - 180 mm | Φ30 - 200 mm |
| Transmission | I=45 | I=60 |
| Rubber sheet thickness | 25mm | 25mm |
